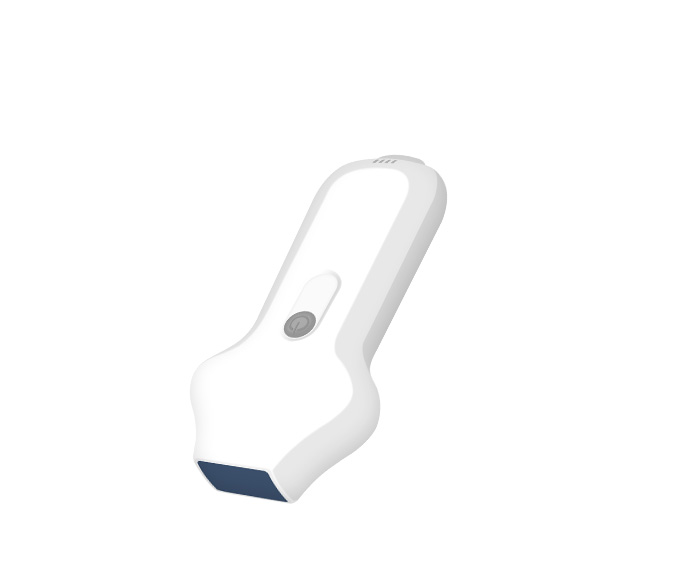

C10UC USB&Wifi cardiac ultrasound probe

One cardiac ultrasound that can provide B,BM, Color,PW mode image for you.

Cette combinaison n'existe pas.

Modality: Wireless Ultrasound Scanner

Specialty: Ultrasound

Manufacturer: Konted

Probe	Phased array probe
Elements	128
Frequency	2.2-3.6Mhz
Depth	90-190mm
Host	Tablet, Smart phone, PC
Connection	802.11.n / 20Mhz/ 5G WIFI(AP)
Software Adjustable Parameters	GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down.
Measurement	B: Length, Area/ Circumference, Angle, Trace, Distance
B+M: Heart rate, Time, Distance
B+PW: Velocity, Heart rate(2), S/D, Depth
Playback Frames	100, 200, 500, 1000 optional
Display Mode	B, B/M, color, PW, PDI
Image Gray Scale	256 level
WiFi Type	Built-in WiFi, 802.11g/20MHz/5G/450Mbps
Channel	64
Frame	24s/f
Gain	40-110Db
Language	English, Chinese,Russian, German, Italian, Spanish, Portuguese
Power	by built-in 2600mAh battery
Battery Replaceable	Yes
Battery Last	3 hours(Working time), 12hours (Stand by time)
Charger	wireless charger
