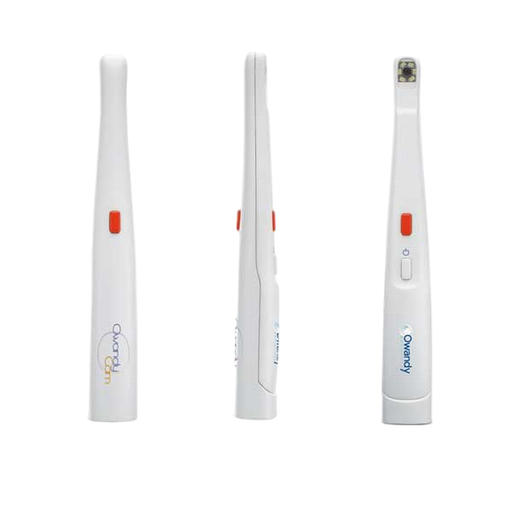

Owandy-Cam HD

HD Owandy-Cam: an optimised HD camera
It takes just a few minutes to learn how to operate it
Simple to operate, and designed to last

Modality
- X-Ray
Specialty
- Dentistry
Manufacturer
- Owandy

This combination does not exist.

Modality: X-Ray

Specialty: Dentistry

Manufacturer: Owandy

4 shooting modes
Its “focus-free” concept delivers enhanced field depth and high quality images. Requiring no adjustments at all, this unit delivers perfectly clear images, from a full smile to just one tooth – and will save you time, too!

User friendly!
Set your images by simply sliding over the touch button. There’ll be no blurry images, allowing you to work in complete confidence.
The USB2 connection makes it easy to move the camera around and share it with your colleagues and partners, anywhere in your surgery!
Its curved shape and ultra-slim head make for greater patient comfort and prevent injuries to the mouth. Its 105° viewing angle sets it apart from other cameras on the market, by enabling more effective exploration of distal areas.

Adapts to suit all patients
HD Owandy-Cam gives you even more detail
An effective and user-friendly communication tool

Direct USB connectivity
Supplied with a 2.5m cable

Specifications

Owandy-Cam HD:
• High sensitivity CCD 1/4”.
• Resolution: (752 x 582) PAL; (768 x 494) NTSC.
• Definition: 470 lines.
• Sensitivity: 2 lux.
• Lighting: eight LEDs.
• Adjustment: automatic.
• Non-inverted image.
• Image capture through touch button or footswitch (optional).
• Angle of view: 70°.
• Cable length: 2.5m.
• Handpiece dimensions: L: 205; W: 28; H: 24 mm.
• Usable part dimensions: W: 16 x D: 11.10 mm.
• Handpiece weight: 55 g.
MINI DOCK USB2:
• Cable length: 2,5 m.
• 1 digital USB output 2.0.
• Controller dimensions: L : 64,50 ; W : 26 ; H : 11 mm.
• Dock weight: 97 g.
• BF-type applied part.
• Operating temperature: +10°C to +40°C.
• Storage temperature: -20°C to +45°C.
• Relative humidity: 10 % to 90 %.
• Atmospheric pressure: 900 hPa to 1060 hPa.
• Continuous service.
• Not protected against water chutes (IPX0).
• Not adapted to the use in presence of an anaesthetic mixture flammable with air, oxygen or dinitrogen
monoxide.
• Complies with the European directive 93/42/EEC.
• Complies with IEC60601-1 standard.
• Complies with IEC60601-2-18 standard.
• Complies with UL 60601-1 et CSA 60601-1 standard.
