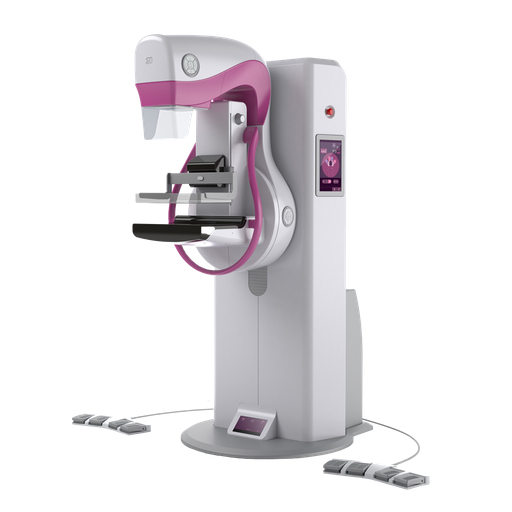

Navigator 3000A mammography is a generation high-end digital mammography model. Compared with Navigator DR Care model, it shares higher performance in imaging resolutions supported by powerful components. It mainly features:

Though as 2D model, it could be updated to realize 3D tomosynthesis mode/function.
The unique streamline appearance design makes out appearance look more elegant.
2D, 3D and 2D+3D Combo Exposure Mode. It can reduce the radiation dose significantly
Unique Pseudocolour Image Processing, which can help to diagnose the microcalcifcation, suspicious tissure more clearly
Simple, and easy operation
Suitable for any environment ,even severe atmosphere condition.

Automatic standard positioning with one touch
Easy and convenient OP with touch screen

Feature
▷ Excellent output: 100mA@25kV
▷ All-in-one system and ASP function
▷ Convenient digital compression control with MICOM
▷ SID 660mm for high sharpness
▷ Displaying compression force, thickness at Sub OP

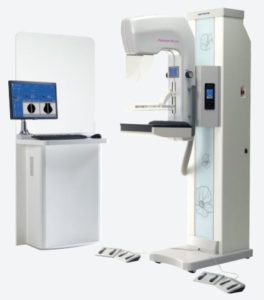

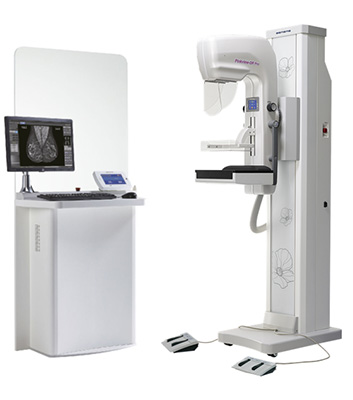

75㎛ high resolution : High quality image with indirect type detector

Feature
-High digital image with high resolution indirect type detector
- Approach the price-sensitive market with economic digital mammography
-MICOM provides the convenient digital compression control
-Perfect compatibility with DICOM

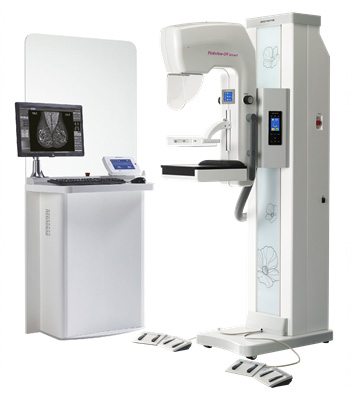

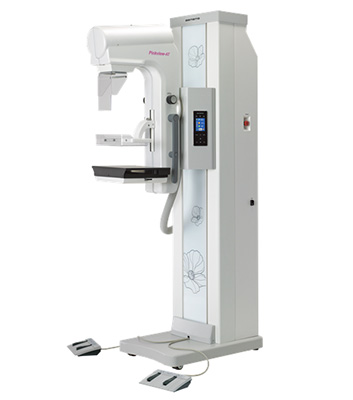

Optimized function for frequent screening performance.

Feature
-All-in-one system and ASP function
-Convenient digital compression control with MICOM
-Perfect compatibility with DICOM
-SID 660mm for high sharpness

Premium digital mammography with 24*30 detector
Combination of W & Rh for excellent digital images

Feature
-All-in-one system and ASP function
-Convenient digital compression control with MICOM
-Perfect compatibility with DICOM
-SID 660mm for high sharpness

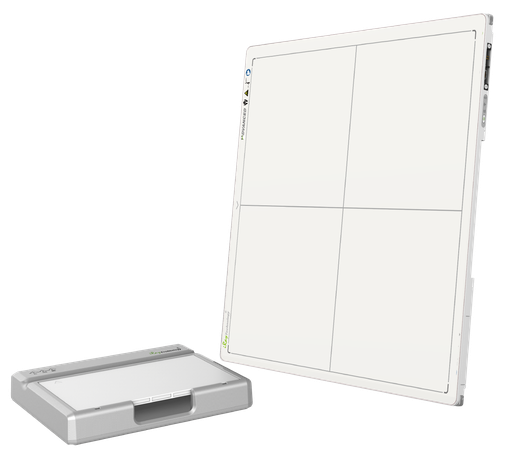

Mars 1417V is a smart 14×17-inch wireless, cassette-sized FPD for radiographic imaging. It features reliable AED, dependable wireless performance, and a long battery life. The Mars 1417V supports a fast work flow, and is the optimal choice for both retrofit and new DR system solutions.

Features
-Wireless cassette detector per ISO 4090, fits in bucky
-Stable iSync+ Automatic Exposure Detection (AED)
-150 μm pixel pitch, with 16 bit ADC for more image details
-Long battery life and smart workflow
-Dual band (2.4 and 5 GHz) wireless support with easy sharing
-Direct deposition CsI for better image quality with lower dose

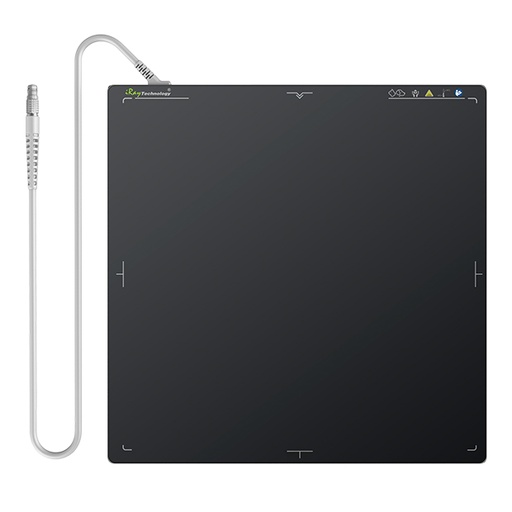

Venu 1717XV is one kind of high performance tethered X-Ray flat panel detector. The technology of CsI could obviously reduce the exposure dose and develop the image quality. And the fast imaging workflow makes it easy for operators to complete the photographing of animals. It can satisfy both of the general and retrofit Veterinary DR system.

Features
Fast imaging workflow
Multiple Trigger Mode
16-bit Convertion
Low Dose
High Quality Image

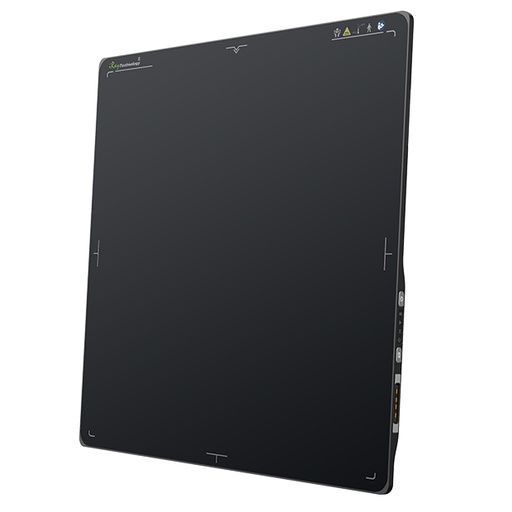

Mars 1717X is a best in class 17×17-inch wireless, cassette-sized flat panel detector for radiographic imaging. It features a 100 μm pixel pitch with direct deposition CsI. Cutting-edge technologies include a novel light-weight housing design with IP56 ingress protection, in-tray battery charging, and reliable, low power automatic exposure detection (AED). With its exceptional image quality the Mars 1717X is an excellent choice for high-end DR systems.

Features
-Wireless cassette detector per ISO 4090, fits in bucky
-Full AED control, exposure at any time
-Best-in-class 100 μm pixel pitch with 16-bit ADC for more image details
-Large capacity battery design, with 8 hours battery life
-Lightweight design with IP56 ingress protection
-Supports a fast workflow for a better user experience
-Direct deposition Csl, with excellent DQE at all frequencies

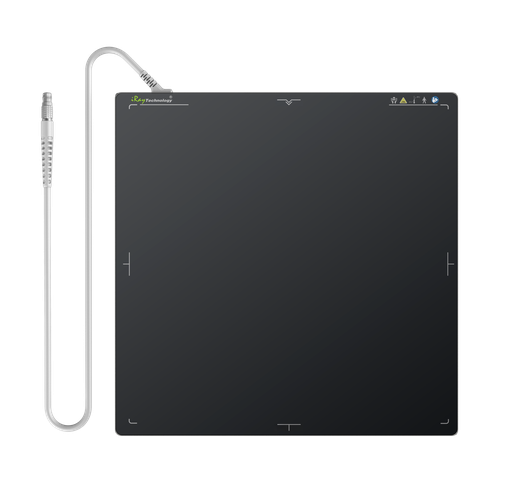

Venu 1717X is a 17×17-inch, tethered cassette-sized FPD for radiographic imaging. It features a 139 μm pixel pitch with direct deposition CsI, and with a reliable AED enables a smart workflow. It is the optimal choice for a high-end DR system.

Features
-Cassette detector per ISO 4090, fits in bucky
-139 μm pixel pitch, with 16 bit ADC for more image details
-Direct deposition CsI for better image quality with lower dose
-Stable iSync+ Automatic Exposure Detection (AED)
-Highly reliable, flexible tether
-Supports a fast and efficient workflow

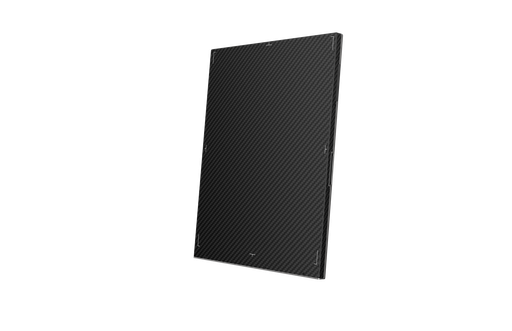

Luna 1013XE is a new generation, high-performance
10×13-inch wireless FPD developed on a flexible sub-
strate. It features a 100 μm pixel pitch with direct deposi-
tion CsI. The cutting-edge flexible panel technology, fea-
tures a strong, yet lightweight design with IP66 ingress
protection, in-tray battery charging, and reliable, low
power AED. With its exceptional image quality the
Luna 1013XE is an excellent choice for equine and EOD
applications.

-Narrow border design
( dead space: 7 mm / 7 mm /10 mm )
-Flexible panel substrate for ultimate strength
-Best-in-class 100 μm pixel pitch with 16-bit ADC for more
image details
-Direct deposition Csl, with excellent DQE at all frequencies

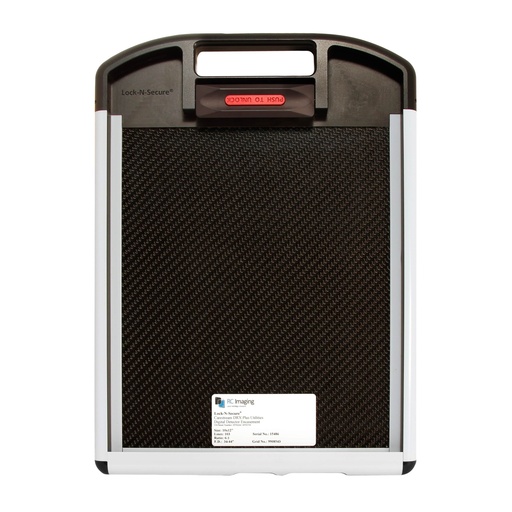

Using an expensive DR Panel in a portable/mobile environment can be extremely risky. You can easily reduce the burden by protecting your investment with the NEW innovative Lock-N- Secure® II DR Panel Protectors containing multiple layers to absorb impact and increase weight capacity. Designed for all wireless, cassette sized panels, Lock-N- Secure® II has the same unparalleled quality features as theoriginal Lock-N- Secure® with a smaller, slim, universal fit profile.

All of RC Imaging’s panel protection products have been tested for strength and durability by an accredited independent laboratory.

-Custom utility ports
-Patented positive lock to prevent panel pop outs
-Easy one hand operation
-Available with a grid or carbon fiber panel for weight distribution
-Multiple handle orientations- Long, Short, and Dual
-Various sizes available
-Three layers of impact protection
-Patient friendly rounded edges
-For cassette-sized wireless or tethered panels

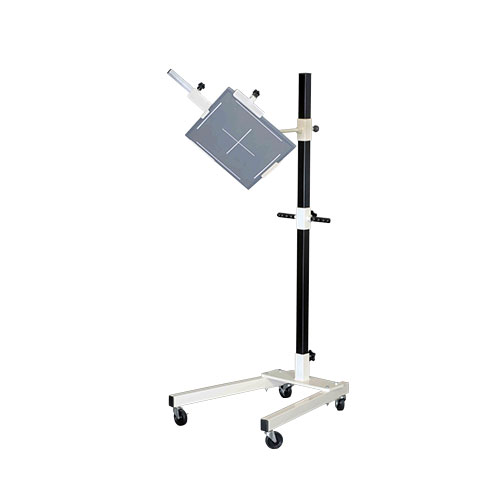

-DR Tilt and Rotate include Push Around
-Adjustable 5 ¾ – 50” range from floor to bottom of Cassette tray
-Arm Slides vertically on pole with 12 holes for easy adjustments
-V-Base allows stability and mobility
-Four swivel casters with a lock on each
-Ships in two cartons
-Holds up to 17 x 17” DR Plates
-3” wide top tray stabilizer for use with DR plate encasements with -handles or Standard without Handles
-Holds up to 40lbs
-Used for DR, CR or Standard Cassettes

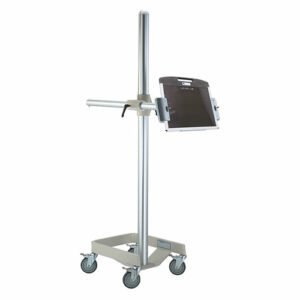

Flexi•holder® significantly reduces retakes caused by improper cassette positioning. It permits smoother scheduling and superior radiographs– saving film, time and labor for cost effective radiographic procedures.

The free-standing model features an extra wide base for maximum stability. It allows accurate radiographs to be taken from virtually any angle from floor level to 71 in + (180 cm) high. It rolls into position on large, locking casters and tilts the cassette 180˚ facing straight up, down or anywhere in between. Free-standing and tabletop models accept virtually all cassettes.

Features:
Eliminates Retakes

-Helps eliminate retakes caused by improper cassette positioning.
-Replaces inefficient sandbags and other "make-shift" holders.
-Versatile Savings
-Saves time and labor for smoother scheduling and superior radiographs.
-Saves film and reduces radiation exposure due to minimal retakes.
-Minimizes patient assistance and discomfort in positioning.

Flexible Arm Movement

-Radiographs can be taken from any angle from floor level to 71” (180 cm).
-Tilts cassette 180° facing straight up, straight down or anywhere in between.
-Rotates cassette 360° clockwise or counterclockwise.
-Arm rotates 360° on vertical column.
-Arm telescopes 26” (66 cm) over the X-ray or operating room table.
-Arm assembly is counterweighted for easy raising or lowering.
-Optional 36” (91 cm) arm available.

Very Stable, Compact Design

-Rolls into position on large, locking casters for stable positioning.
-19” x 22” x 75” (48 x 56 x 191 cm).
-110 lbs. (50 kg)
-Convenient Ratchet Handles
-Ratchet handles can be repositioned easily to help eliminate interference problems when positioning cassettes.

Accepts All Cassettes

-Accepts virtually all cassettes and does not obscure cassette film area.
-One Hand Operation
-A lip on the cassette holder enables the cassette to be inserted with one hand, if necessary.

Accurate Calibration Scales

-Column and arm calibration scales provide
exact, repeatable angulation.

Diagnostic Applications

-Three-way studies of acute abdomens.
Myelograms.
-Fractures where patient is immobilized.
-Lateral decubitus fluid level studies of
abdomen and chest.
-Operating room radiography.

Therapeutic Applications

-Radiation therapy verification films
(portal films).
-Localization for tangential breast, isocentric
or oblique fields.
-Simulation without fluoroscopy.
-Implant source localization by
orthogonal films.

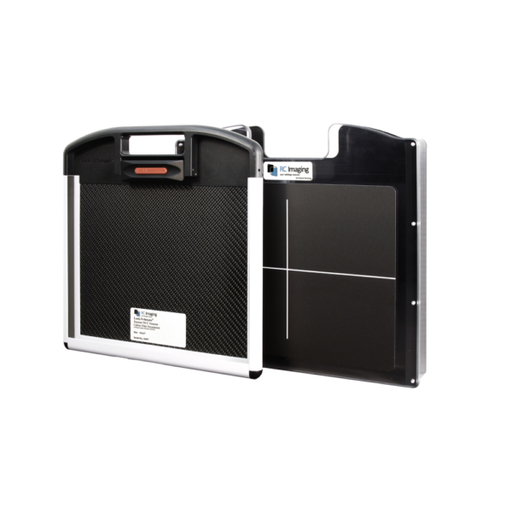

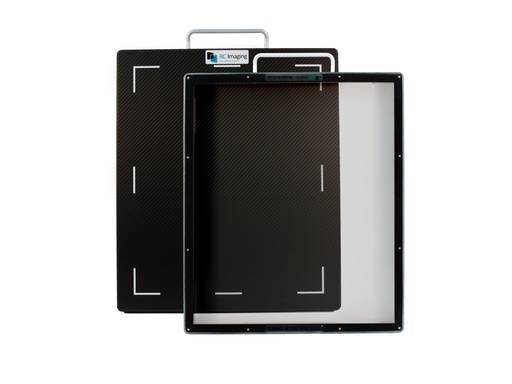

The new Weight Bearing Protective Cover has been designed to accommodate Digital (DR) Panels, CR Cassettes, and traditional X-Ray Cassettes.The covers are strong yet light-weight, offering a high degree of protection during weight bearing studies or procedures.

The latest panel and cassette protectors are constructed of a high density polyethylene frame and either a carbon fiber or smoked polycarbonate top, offering protection up to 1300 lbs. Our easy lift handle makes removal and carrying a breeze.

Each includes non-skid rubber feet that maintain the correct placement even on hard surfaces, which provides safety for all patients during procedures. The handle offers easy lifting and removal.

WB.T1012LD
10x12 in. Polycarbonate weight bearing tunnel with opening in the long dimension, supports up to 700 lbs. Lock-N-Secure to be quoted separately.
Lock-N-Secure required, to be quoted separately.

WB.T1417LD
14x17 in. Carbon fiber weight bearing tunnel with opening in the long dimension, supports up to 2000 lbs. Lock-N-Secure to be quoted separately.

Lock-N-Secure to be quoted separately
Description:

This product is ideal for equine and veterinary imaging to protect your DR Panel from excessive weight.
Our Weight Bearing Tunnel is perfect for imaging large animals when paired with one of our patented Lock-N-Secure ® panel protectors, this product will allow for seamless removal without disruption.

Features:

Distributed weight capacity ranging from 700 Lbs. to over 2000 Lbs.
Grab-N-Go handle
Target area for easy alignment
Quality Construction

Available in Carbon Fiber or Polycarbonate
Non-skid rubber feet
Available in Multiple Sizes

10x12 in. (25x30 cm.)
14x17 in. (35x43 cm.)

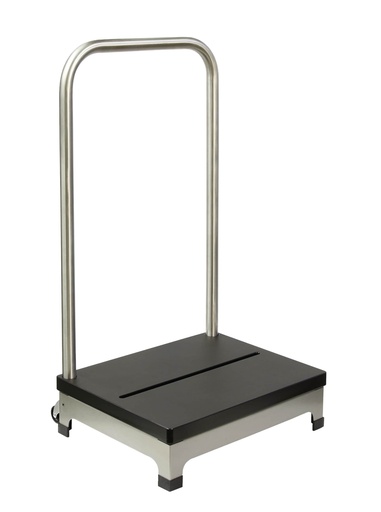

The Weight Bearing 1 Step Platform is designed to accommodate digital DR Panels, CR and Analog Cassettes.

This product is designed for easy mobility plus stability while allowing for easy weight bearing imaging on the foot, ankle, and knee.

The 1 Step Platform is constructed of high density HDPE plastic and stainless steel.

Features:
-Anti-slip platform
-Comfortable textured platform
-Non-skid rubber feet
-Medical grade stainless steel rail for patient stability
-Rear mounted offset casters for easy relocation
-Simple cleaning and sterilization

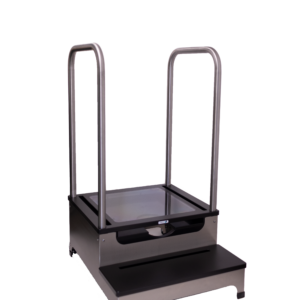

The Weight Bearing 2 Step Platform is designed to accommodate digital DR Panels, CR and Analog Cassettes.

This product is designed for easy mobility and stability while allowing for easy weight bearing imaging on the foot, ankle and knee.

The 2 Step Platform is constructed of high density HDPE plastic and stainless steel.

Features:

-Anti-slip platform
-Comfortable textured platform
-Non-skid rubber feet
-Multiple detector slots for positioning
-Medical grade stainless steel rails for patient stability
-Rear mounted offset casters for easy relocation
-Simple cleaning and sterilization

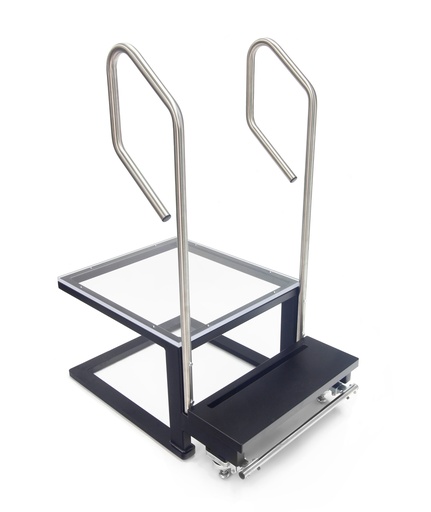

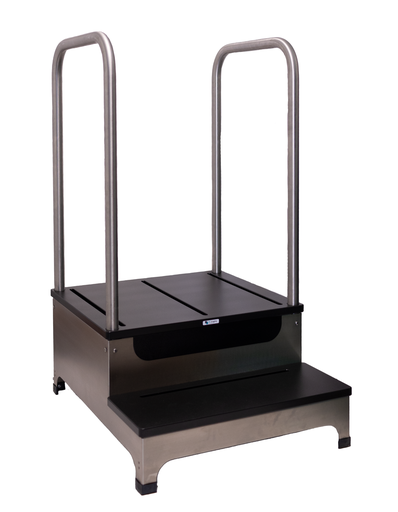

Allows for Lateral, AP, and other anatomical views from a single patient position

Features:

-Designed to accommodate digital 14"x17" and 17"x17" DR Panels
-Attenuation and construction fully tested
-Lock-N-Secure® II Panel Protector included
-Anti-slip platform
-Non-skid rubber feet
-Medical grade stainless steel rails for patient stability
-Rear mounted offset casters for easy relocation
-Simple cleaning and sterilization

The Classic Straight Arm/U-Arm Weight Bearing Platform. Designed and tested for ease of mobility while allowing secure lock-down for patient safety.

Features:

-Certified Laboratory Weight Capacity 500 Lbs.
-Quick Wheels Lock with Trip Release Bar
-Clear Polycarbonate Top

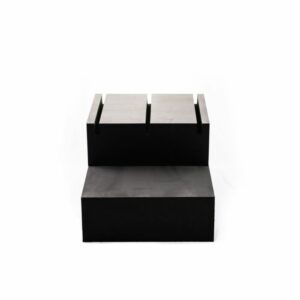

The 2 Step Weight Bearing Cassette / DR Panel Holder is designed as a lightweight economical option for studies that might require positioning on a 2-step platform. This allows for quick and easy positioning for patients that are stable enough to not need a built-in handrail. A Valsbar or other stabilizing bar in your x-ray room can be used for stability if needed.

High density crosslink closed cell foam provides durability and cleanability is an excellent positioning aide for weight bearing studies. Developed to facilitate imaging of longitudinal arch and lateral projection studies of feet and ankles.

The closed cell crosslink foam has a very fine micro-cellular structure that is characterized by a compact feel and is resistant to fluids. The smooth easy to clean surface is resistant to blood, Betadine, barium, alcohol, and other fluids., It is ozone resistant and impervious to mildew, mold, rot and bacteria. Nontoxic and contains no CFC's, HCFC's, or hydrocarbon blowing agents. Anti-microbial: antibacterial and antifungal. Weight bearing up to 300lbs.

-Foam Size: 24"L x 16"W x 12"H
-First Step: 10"L x 16"W x 6"H
-Top Platform: 14"L x 16"W x 12"H
-Dimension of the slot: 14"L x 0.625"W x 1.5"D
-Weight 12 lbs.
-Shown with 14 x 17 receptor
